特徴

仕様

容量の乾燥: 500kg

重さ: 100kg

加熱方法: 電気加熱

材料: SUS304

温度範囲: 40~200℃

真空度: 760~1Torr

電源: 220V50Hz

温度変動: ±0.5℃

テンパール均一性: ±5°C

制御精度: 0.1℃

Heating-upの時間: rt〜200 -80分<80分

内部素材: SUS304ステンレス鋼

外部材料: コールドロールスチールプレート+パウダーコーティング

絶縁: PU＆グラスファイバーウール

制御モード: マイコン PID+S.S.R+タイマー

ハイライト:

500kg industrial vacuum drying oven

vacuum drying oven 40-200°C

industrial drying oven with warranty

基本情報

起源の場所: 中国広州

ブランド名: LIYI

お支払配送条件

ギャラリー

500kg Vacuum Drying Oven 40-200°C for Industrial Use

製品の説明

Liyi Oven With Vacuum Pump Lab Use High Temperature Vacuum Drying Oven

Product Description

Liyi industrial vacuum oven is designed for drying and heating tests under vacuum conditions, suitable for scientific research units, universities, and industrial laboratories. It finds applications in biochemical, chemical, pharmaceutical, health, agricultural research, and environmental protection fields. Ideal for powder drying, baking, and sterilization of glass containers, particularly effective for heat-sensitive, oxidation-prone, and complex-component materials.

Key Advantages

Reduces drying temperature requirements
Prevents oxidation of sensitive materials during heating
Protects biological cells from air exposure damage
Eliminates dust contamination

Technical Specifications

Model	LY-608-30	LY-608-40	LY-608-60	LY-608-X (Customized)
Inner chamber size W×H×D(cm)	30×30×30	40×40×40	60×60×60	Customizable
Exterior chamber size W×H×D(cm)	61×47×47	71×57×57	96×80×80
Testing temperature range	RT~200℃ (300℃/400℃ available)
Vacuum degree	Atmospheric pressure~ 100Pa
Temperature fluctuation	±0.5℃
Temperature uniformity	±5℃
Control accuracy	0.1℃
Heating-up time (RT~200℃)	<80min (No linear, empty load)
Exterior chamber material	Cold-rolled steel plate with powder coating
Interior chamber material	SUS#304 Stainless steel
Insulation	PU & fiberglass wool
Power supply	AC 3 phase 220/380V 60/50Hz

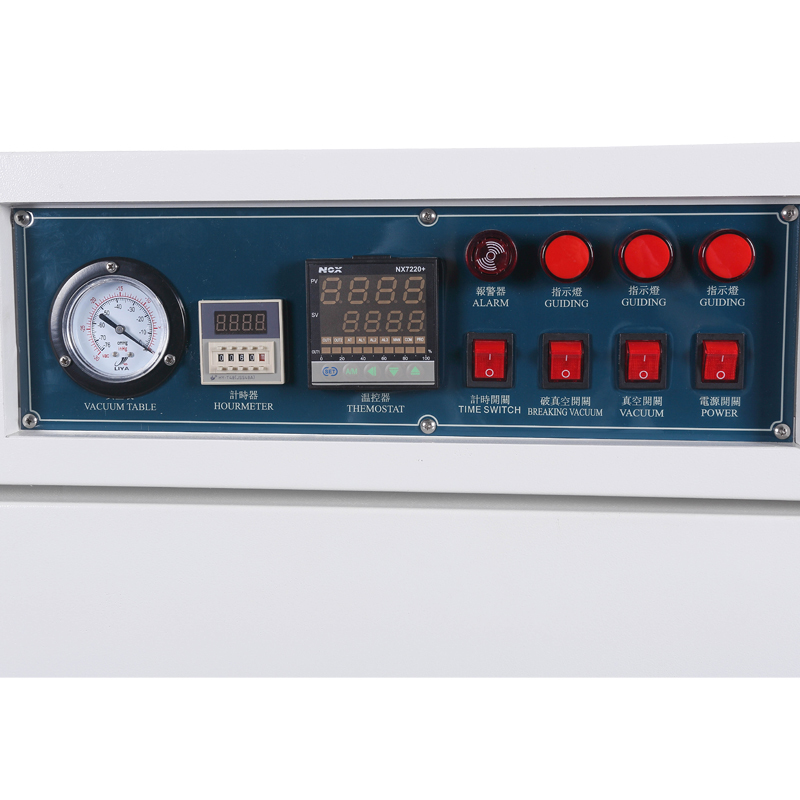

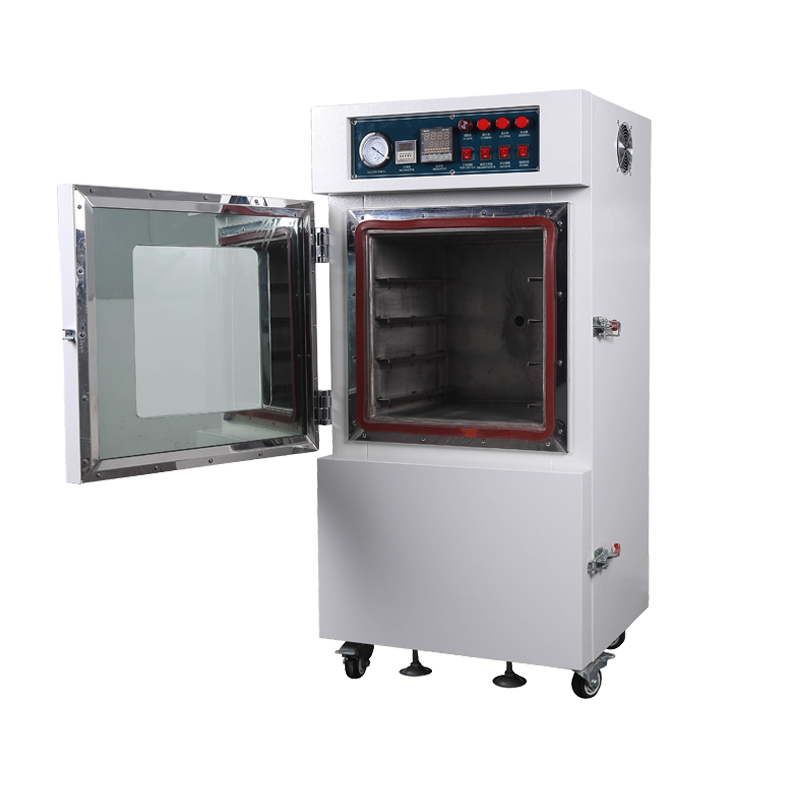

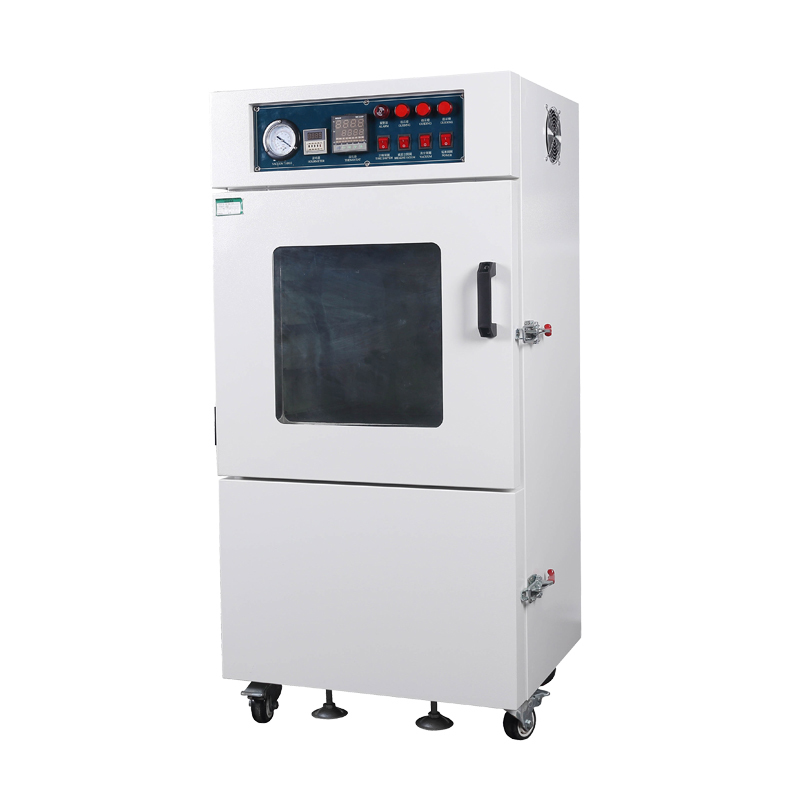

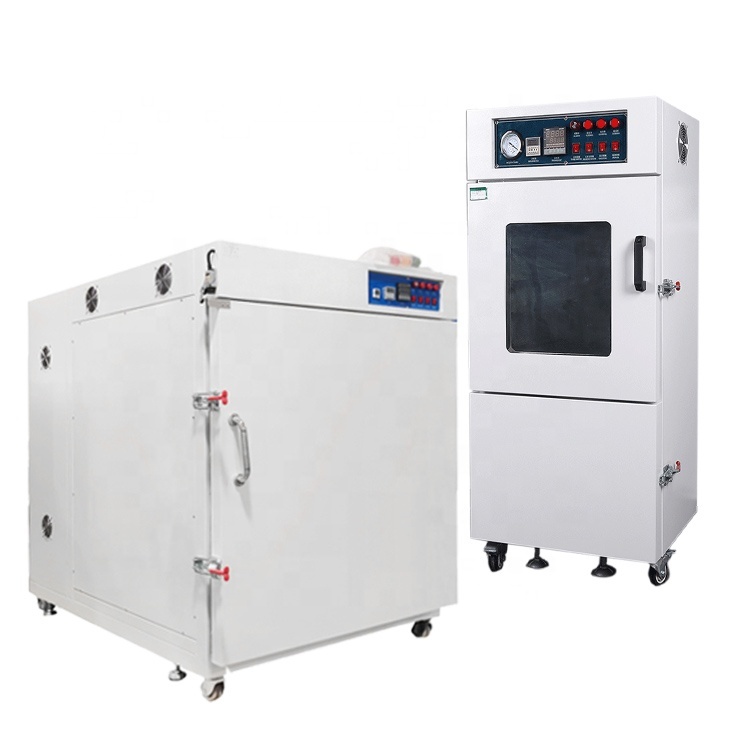

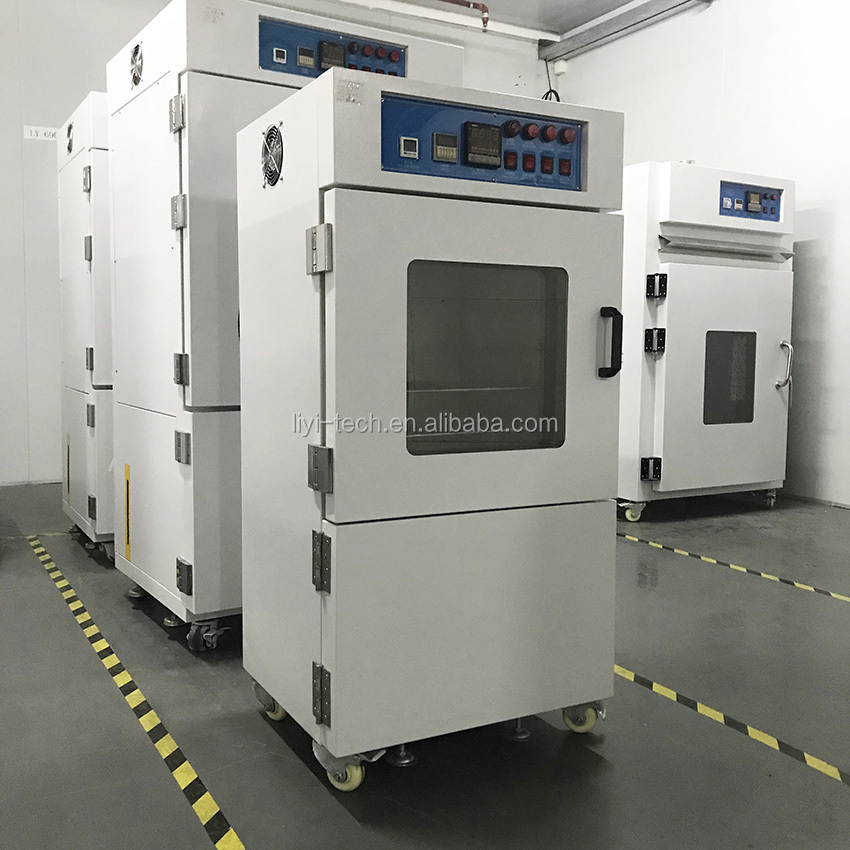

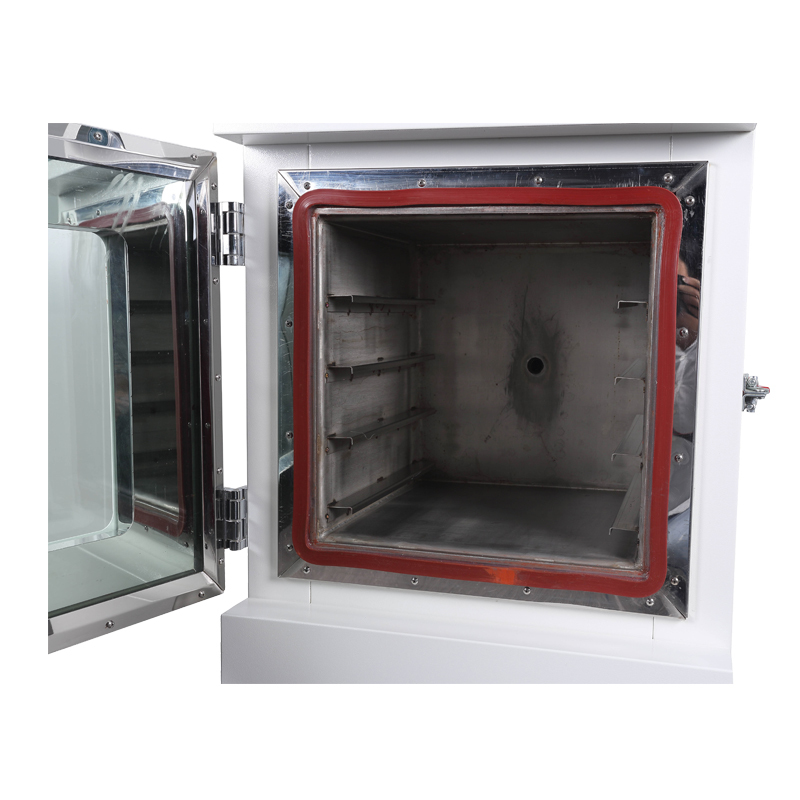

Product Images

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production enterprise specializing in environmental testing equipment. With advanced technology, experienced personnel, and comprehensive quality management, we serve customers in over 150 countries. Our product range includes environmental chambers, industrial ovens, and various material testing equipment.

Frequently Asked Questions

1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty period and offer technical support via email or video chat, with solutions typically provided within 24-48 hours.

2. What's the delivery term?

Standard machines are typically available from stock with 15-20 working days lead time for non-stock items. Urgent orders can be accommodated with special arrangements.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, we offer both standard and customized machines, including OEM/ODM services with client logos.

4. How can I install and use the machine?

Most machines are shipped fully assembled. We provide English operation videos and can assist with on-site installation when necessary.
