特徴

仕様

電源: 220V 50Hz

電圧オプション: 110V、240V、380V、220V

保護クラス: IP56

試験室容量: 108L、270L、600L、750L、1000L

スプレーの量: 1.0~2.0ml/80cm2/h

pH範囲: 6.5～7.2、3.0～3.2

テストチャンバー温度: NSS.ACSS 35℃±1℃、CASS 50℃±1℃

飽和空気温度: NSS.ACSS 47℃±1℃、CASS 63℃±1℃

試験室サイズ: 60*45*40cm、90*60*50cm、120*100*50cm、150*100*50cm、200*100*50cm

最大液体容量: 15L、25L、40L

消費電力: AC220V、10A; AC220V、15A; AC220V、30A

噴霧ノズルの種類: ボー・ヌートの原則

コントローラータイプ: デジタルマイコン

表示変数: 温度、湿度、圧力、噴霧量、時間

設計標準: GB/T 10587-2006、GB/T 10125-1997、JIS-D0201、H8502、H8610、K5400、Z2371

ハイライト:

480L Salt Spray Test Chamber

IP56 Protected Cyclic Corrosion Test Chamber

220V Salt Spray Test Chamber

基本情報

起源の場所: 中国広州

ブランド名: liyi

お支払配送条件

ギャラリー

LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing

製品の説明

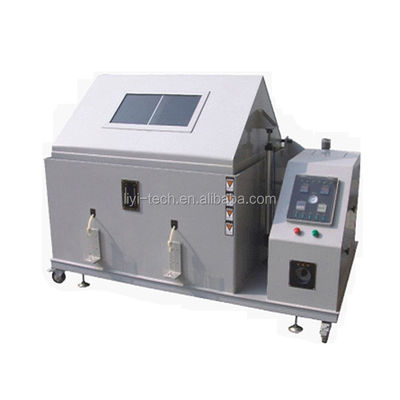

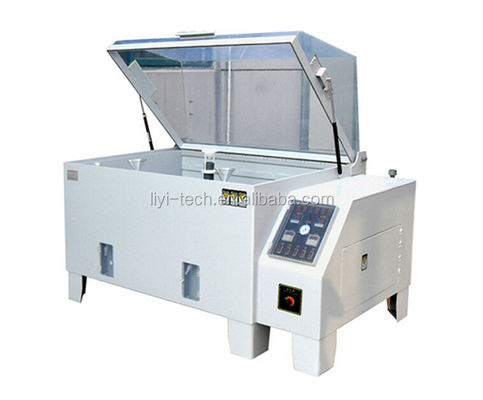

LIYI 108L 270L 480L Corrosion Salt Water Spray Testing Machine

The LIYI salt spray test machine evaluates the corrosion resistance of iron metals and their inorganic or organic coatings, including electroplating, anodizing, conversion coatings, and paints. This accelerated corrosion test predicts the protective finish's suitability by analyzing corrosion product formation over time.

Key Features

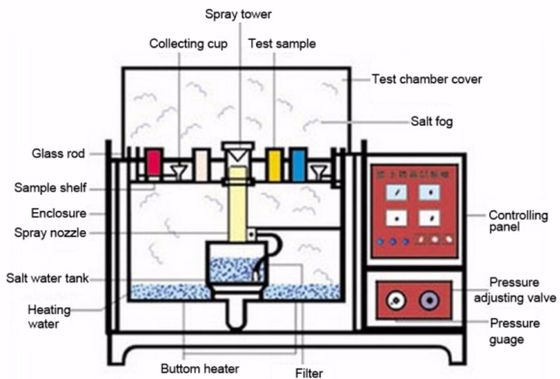

Bo Nute Principle spray nozzle prevents saline crystallization while creating fine atomization
Digital microcomputer controller ensures precise temperature regulation
Clear display shows temperature, humidity, pressure, spray capacity, and test duration
Complies with international testing standards worldwide

Technical Specifications

Model	LY-609-60	LY-609-90	LY-609-120	LY-609-150	LY-609-200
Test chamber capacity (L)	108L	270L	600L	750L	1000L
Temperature range	NSS/ACSS: 35°C±1°C \| CASS: 50°C±1°C
Chamber dimensions (L×W×D cm)	60×45×40	90×60×50	120×100×50	150×100×50	200×100×50
Test liquid capacity (L)	15	25	40	40	40
Power requirements	AC220V, 10A	AC220V, 15A	AC220V, 30A	AC220V, 30A	AC220V, 30A

Product Images

Manufacturer Information

Dongguan Liyi Environmental Technology Co., Ltd specializes in developing and manufacturing environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries, offering comprehensive testing solutions for various industries.

Frequently Asked Questions

1. Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of environmental testing equipment. All machines include 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and technical support within 24-48 hours of problem identification.

2. What is the delivery time?

Standard machines typically ship within 15-20 working days after deposit. We can expedite production for urgent orders.

3. Do you offer customization and OEM services?

Yes, we provide both standard and customized machines, including OEM/ODM services with client branding.

4. How do I install and use the machine?

Most machines ship fully assembled - simply connect power to begin operation. We provide English operation videos and can assist with on-site installation when necessary.
